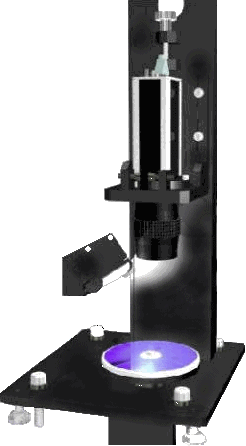

Disc Appearance Inspection System |
|
|
|
|
|
 |
|
|
|
|
|
| Inspectable Disc |
CD-R、DVD-R |
| Inspection Items |
Appearance |
Dye Embrocation StateInspection Condtion of dye coat part |
| Character reader |
Read Character Code from The Area of Inside Band |
| Tact Time |
Appr.1.3 second/piece |
| Inspection Accuracy |
Defect Size |
Appr.30μm |
| Character Reading Speed |
10letters/second |
|
|
|
|
|
|
Specification |
|
|
| Chuck |
Turn Table |
| Data Receiver |
CCD Line Camera（2048pix） |
| Illumination |
HalogenLight |
| DI/DO |
IN:16 point, OUT16 point |
| E-NET |
100base-T |
| USI |
User interface beced on WinNT |
|
|
|
|
|
