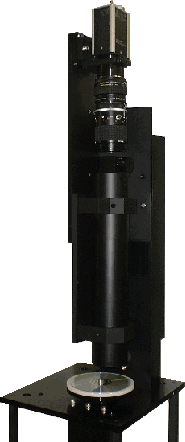

Disc Appearance Inspection System |
|
|
|
|
|
 |
|
|
|
|
|
| Inspectable |
DVD-ROM、DVD-VIDEO、DVD-R、DVD-R/W、DVD-RAM |
| Inspection Items |
Appearance |
Contamination, Bubble, Scratch, Internal allotrio, Dye Embrocation State.
It can classify the inside defect state from
other defects.
(The other kinds of inspection item can also be discussed.) |
| Tact Time |
Appr. 1.5 second/piece |
| Inspection Accuracy |
Defect Size |
Appr. 20μm |
|
|
|
|
|
|
Specification |
|
|
| Chuck |
Turn Table |
| Data Receiver |
CCD Line Camera（2048pix） |
| Illumination |
Collimated Light |
| DI/DO |
IN:16 point OUT:16 point |
| E-NET |
100base-T |
| Software |
Defect map, Defect imagelist,Mask function,
Result function |
|
|
|
|
|
|
 |
|
|
Defect |
|
