IR-1300 |
|
|
|
|
|
You can see the state of the IC pattern clearly with an infrared light
and infrared camera from the back side of the silicon chip.
IR -1300 displays a clear image with real-time processing software (DT
enhancer)
|
|
|
|
|
|
Characteristic
|
|
|
*Support X100 objecyive lens for option. |
|
|
*It is easy to set focus, XY stage position |
|
|
*130Mega pixel Infrared CMOS Camera. |
|
|
*Usability improved by the additional function of the DT enhancer software. |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
 |
|
|
ＩＲ-1300(IR-Micro scope, NotePC with software) |
|
X,Y stage |
|
|
|
|
|
DT-Enhancer(real-time image enhance software) |
|
|
The DT enhancer pressce a low contrast image to the bright clear image.
|
|
|
|
|
|
Main function |
|
|
-Image capture- |
|
|
・8bit monocrome |
|
|
|
|
|
-Display Image- |
|
|
*Full screen display *Zoom display(X2-X10) |
|
|
|
|
|
-Efect prsessing- |
|
|
*Brightness proseccing *Integral processing |
|
|
|
|
|
-Measure function- |
|
|
*Scale display *Area measure * Saize measure |
|
|
|
|
|
-Figure drawing- |
|
|
*Circle *Square *Arrow *Text |
|
|
|
|
|
-File management- |
|
|
*BMP File save/load *One click save |
|
|
*Original screen save *Origonal screen with drawing data. |
|
|
|
|
|
|
|
|
 |
|
|
Display image sample |
|
|
|
|
|
 |
|
|

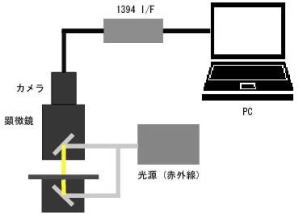

System stracture |
|
|
|
|
|
Object sample |
|
|
Si Silicon wafer |
|
|
|
|
|
IR-camera |
|
|
130mega pixel C-MOS camera |
|
|
InGaAs camera (option) |
|
|
Main versatile |
|
|
Filip chip status, Boid inspection, IC pattern check |
|
|
Alignment mark difference measure of sandwich wafer. |
|
|
Oxide size measure of VCSEL wafer. |
|
|
Basic specification |
|
|
Objective lens 5x, 10x, 20x, 50x, 100x
*IR-Light soce 50W、Reflection, Transparence, Note PC, XY manual stage,
DT-enhancer (
real time image enhance software
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Efect prosessing image sample |
|
|
 |
→ |
 |
|
|
Real image sample |
|
DT-enhancer useing image sample |
|
|
|
|
