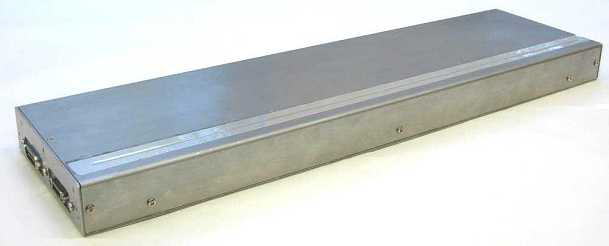

X-ray Line scan camera
CT series
CT series Line scan camera is using for X-ray inspection aplication such as industrial material or food etc.
The camera resolutin is 320pix to 3840pix and inspection speed is maximum 40m/min.
X-ray Line scan camera CT series
Model Number CT252i-0.2(0.4,0.8) CT502i-0.2(0.4,0.8) CT752i-0.2(0.4,0.8)
Detect Method Scintillator(Gd2O2S:Tb)
X-Ray Sensing Lenge 25kV 〜 160kV
Pixel Pitchi (mm) 0.2 0.4 0.8 0.2 0.4 0.8 0.2 0.4 0.8
Detect Lange 256 512 768
Detect Pixel 1280 640 320 2560 1280 640 3840 1920 960
Line Scan Speed 0.2mm:4m/mim 〜 10m/mim   0.4,0.8mm:4m/mim 〜 40m/mim
A/D Resolution 12bit
PC Inter Face Camera Link (Basic Configration)
Dimention (mm) W29xH40xD150 W545xH40xD150 W800xH40xD150
Weight 4.5kg 8.3kg 12.2kg

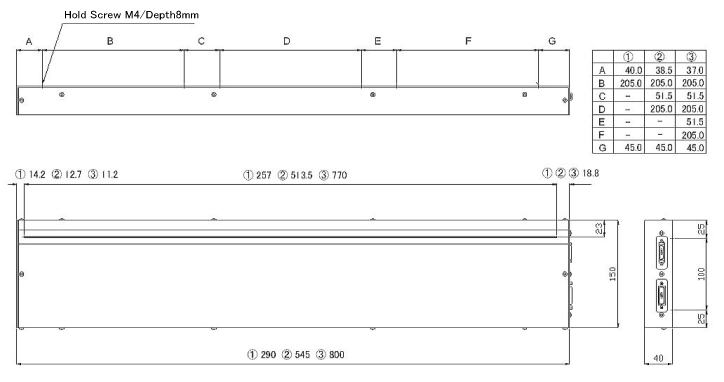

Dimention :mm

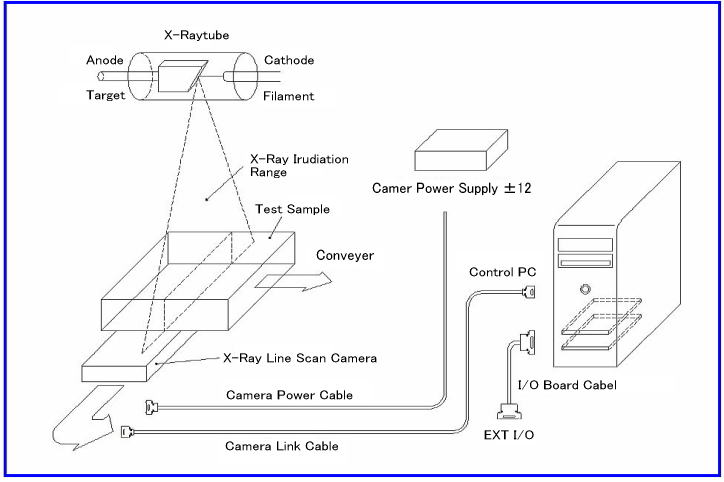

〜Sample system diagram〜
   We also have X-ray light, camera powersupply, controle computer, applcation software,
   comveyor system.
   Please mail your system idea. We are ready to accept your order.
